<%NUMBERING1%>.<%NUMBERING2%>.<%NUMBERING3%> PRTG Manual: SNMP Custom String Sensor

The SNMP Custom String sensor monitors a string returned by a specific object identifier (OID) via the Simple Network Management Protocol (SNMP). It can check for keywords. If you want to set limits to the channel value, you can also extract a numeric value contained in the string.

i_round_blueIn the sensor message, the sensor shows the string that you search for and the reason for the Warning or Down status.

i_round_blueThe SNMP Library sensor automatically creates SNMP Custom String sensors when the Management Information Base (MIB) file that you import contains string values.

SNMP Custom String Sensor

SNMP Custom String Sensor

i_square_cyanFor a detailed list and descriptions of the channels that this sensor can show, see section Channel List.

Sensor in Other Languages

  • Dutch: SNMP Aangepaste Tekenreeks
  • French: Chaîne personnalisée (SNMP)
  • German: SNMP-Zeichenfolge
  • Japanese: SNMP カスタム文字列
  • Portuguese: Sequência de caracteres (customizado) (SNMP)
  • Russian: SNMP: строка ответа
  • Simplified Chinese: SNMP 自定义字符串
  • Spanish: Cadena (personalizado) (SNMP)

Remarks

  • This sensor supports IPv6.
  • This sensor has a very low performance impact.
  • It might not work to query data from a probe device via SNMP (querying localhost, 127.0.0.1, or ::1). Add this device with the IP address that it has in your network and create the sensor on this device instead.

Basic Sensor Settings

Basic Sensor Settings

Basic Sensor Settings

Setting

Description

Sensor Name

Enter a name to identify the sensor. By default, PRTG shows this name in the device tree, as well as in alarms, logs, notifications, reports, maps, libraries, and tickets.

i_round_blueIf the name contains angle brackets (<>), PRTG replaces them with braces ({}) for security reasons. For more information, see the Knowledge Base: What security features does PRTG include?

Parent Tags

The tags that the sensor inherits from its parent device, parent group, and parent probe.

i_round_blueThis setting is for your information only. You cannot change it.

Tags

Enter one or more tags. Confirm each tag with the Spacebar key, a comma, or the Enter key. You can use tags to group objects and use tag-filtered views later on. Tags are not case-sensitive. Tags are automatically inherited.

i_round_blueIt is not possible to enter tags with a leading plus (+) or minus (-) sign, nor tags with parentheses (()) or angle brackets (<>).

i_round_blueFor performance reasons, it can take some minutes until you can filter for new tags that you added.

The sensor has the following default tags that are automatically predefined in the sensor's settings when you add the sensor:

  • snmpcustomstringsensor

Priority

Select a priority for the sensor. This setting determines the position of the sensor in lists. The highest priority is at the top of a list. Choose from the lowest priority (i_priority_1) to the highest priority (i_priority_5).

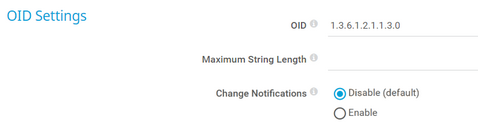

OID Settings

OID Settings

OID Settings

Setting

Description

OID

Enter the OID of the SNMP object that you want to receive a string from.

i_round_blueMost OIDs begin with 1.3.6.1. However, OIDs that start with 1.0, or 1.1, or 1.2 are also allowed. If you want to entirely disable the validation of your entry, add the string norfccheck: to the beginning of the OID, for example, norfccheck:2.0.0.0.1.

Maximum String Length

Define the maximum length of the string that PRTG receives from the SNMP object at the OID. If the string is longer than this value, the sensor shows the Down status. Enter an integer or leave the field empty.

If Value Changes

Define what the sensor does when its value changes:

  • Ignore (default): Do nothing.
  • Trigger 'change' notification: Send an internal message that indicates a change.
    i_round_blueIn combination with a change trigger, you can use this to trigger a notification if a change occurs.

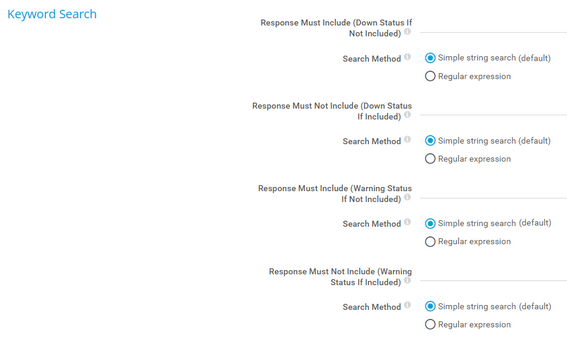

Keyword Search

Keyword Search

Keyword Search

Setting

Description

Response Must Include (Down Status if Not Included)

Define the search string that must be part of the data that PRTG receives from the SNMP object at the OID. You can enter a simple string in plain text or a regular expression (regex).

i_round_redThe search string must be case-sensitive.

i_round_blueIf the data does not include the search pattern, the sensor shows the Down status.

Search Method

Define the method with which you want to provide the search string.

  • Simple string search (default): Search for a simple string in plain text.

i_round_blueThe characters * and ? work as placeholders. * stands for no number or any number of characters and ? stands for exactly one character. You cannot change this behavior. The literal search for these characters is only possible with a regex.

  • Regular expression: Search with a regex.

i_round_bluePRTG supports Perl Compatible Regular Expression (PCRE) regex. For more information, see section Regular Expressions.

Response Must Not Include (Down Status if Included)

Define the search string that must not be part of the data that PRTG receives form the SNMP object at the OID. You can enter a simple string in plain text or a regex.

i_round_redThe search string must be case-sensitive.

i_round_blueIf the data does include the search pattern, the sensor shows the Down status.

Search Method

Define the method with which you want to provide the search string.

  • Simple string search (default): Search for a simple string in plain text.

i_round_blueThe characters * and ? work as placeholders. * stands for no number or any number of characters and ? stands for exactly one character. You cannot change this behavior. The literal search for these characters is only possible with a regex.

  • Regular expression: Search with a regex.

i_round_bluePRTG supports Perl Compatible Regular Expression (PCRE) regex. For more information, see section Regular Expressions.

Response Must Include (Warning Status If Not Included)

Define the search string that must be part of the data that PRTG receives from the SNMP object at the OID. You can enter a simple string in plain text or a regex.

i_round_redThe search string must be case-sensitive.

i_round_blueIf the data does not include the search pattern, the sensor shows the Warning status.

Search Method

Define the method with which you want to provide the search string.

  • Simple string search (default): Search for a simple string in plain text.

i_round_blueThe characters * and ? work as placeholders. * stands for no number or any number of characters and ? stands for exactly one character. You cannot change this behavior. The literal search for these characters is only possible with a regex.

  • Regular expression: Search with a regex.

i_round_bluePRTG supports Perl Compatible Regular Expression (PCRE) regex. For more information, see section Regular Expressions.

Response Must Not Include (Warning Status If Included)

Define the search string that must not be part of the data that PRTG receives form the SNMP object at the OID. You can enter a simple string in plain text or a regex.

i_round_redThe search string must be case-sensitive.

i_round_blueIf the data does include the search pattern, the sensor shows the Warning status.

Search Method

Define the method with which you want to provide the search string.

  • Simple string search (default): Search for a simple string in plain text.

i_round_blueThe characters * and ? work as placeholders. * stands for no number or any number of characters and ? stands for exactly one character. You cannot change this behavior. The literal search for these characters is only possible with a regex.

  • Regular expression: Search with a regex.

i_round_bluePRTG supports Perl Compatible Regular Expression (PCRE) regex. For more information, see section Regular Expressions.

Extended Processing

Extended Processing

Extended Processing

Setting

Description

Interpret Result As

Define the type of the received string:

  • String (default): Handle the result as a common string.
  • Bytes in hexadecimal notation: Handle the result as bytes in hexadecimal notation. For example, select this option if you monitor MAC addresses.
  • Bytes in decimal notation: Handle the result as bytes in decimal notation. For example, select this option if you monitor IP addresses.

Numeric Value Extraction

Define if you want to filter out a numeric value from the received string:

  • Do not use extraction (default): Do not extract a float value. Use the result as a string value.
  • Use a regular expression for extraction: Use a regular expression (regex) to identify a numeric value in the string and to convert it to a float value to use it, for example, with channel limits. Define below. See also the example.
    i_square_cyanFor more information, see section Channel Settings.

Regular Expression

This setting is only visible if you select Use a regular expression for extraction above.

Enter a regular expression to identify the numeric value that you want to extract from the string returned by the SNMP object at the specified OID. You can use capturing groups.

i_round_redMake sure that the expression only returns numbers, including the decimal and thousands separators.

i_round_bluePRTG supports Perl Compatible Regular Expression (PCRE) regex. For more information, see section Regular Expressions.

Index of Capturing Group

This setting is only visible if you select Use a regular expression for extraction above.

If your regex uses capturing groups, specify which one captures the number. Enter an integer or leave the field empty.

Decimal Separator

This setting is only visible if you select Use a regular expression for extraction above.

Define the character for the decimal separator of the number. Enter a string or leave the field empty.

Thousands Separator

This setting is only visible if you select Use a regular expression for extraction above.

Define the character for the thousands separator of the number. Enter a string or leave the field empty.

Sensor Display

Sensor Display

Sensor Display

Setting

Description

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel is always displayed below the sensor's name. The available options depend on what channels are available for this sensor.

i_round_blueYou can set a different primary channel later by clicking b_channel_primary below a channel gauge on the sensor's Overview tab.

Graph Type

Define how different channels are shown for this sensor:

  • Show channels independently (default): Show a graph for each channel.
  • Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This generates a graph that visualizes the different components of your total traffic.
    i_round_redYou cannot use this option in combination with manual Vertical Axis Scaling (available in the channel settings).

Stack Unit

This setting is only visible if you select Stack channels on top of each other above.

Select a unit from the list. All channels with this unit are stacked on top of each other. By default, you cannot exclude single channels from stacking if they use the selected unit. However, there is an advanced procedure to do so.

Inherited Settings

By default, all of these settings are inherited from objects that are higher in the hierarchy. We recommend that you change them centrally in the root group settings if necessary. To change a setting for this object only, click b_inherited_enabled under the corresponding setting name to disable the inheritance and to display its options.

i_square_cyanFor more information, see section Inheritance of Settings.

Scanning Interval

Scanning Interval

Scanning Interval

i_square_cyanFor more information, see section Root Group Settings, section Scanning Interval.

Schedules, Dependencies, and Maintenance Window

i_round_blueYou cannot interrupt the inheritance for schedules, dependencies, and maintenance windows. The corresponding settings from the parent objects are always active. However, you can define additional schedules, dependencies, and maintenance windows. They are active at the same time as the parent objects' settings.

Schedules, Dependencies, and Maintenance Window

Schedules, Dependencies, and Maintenance Window

i_square_cyanFor more information, see section Root Group Settings, section Schedules, Dependencies, and Maintenance Window (default).

Access Rights

Access Rights

Access Rights

i_square_cyanFor more information, see section Root Group Settings, section Access Rights.

Number Extraction with Regular Expression

i_speechIf you want to extract a number in the response string via a regex, note that the index for captures in this sensor is based on 1 (not on 0). Furthermore, capturing groups are not automatically created. The example below illustrates this issue.

Consider the following string as returned by a request for CPU usage:

5 Sec (3.49%), 1 Min (3.555%), 5 Min (3.90%)

Assuming you would like to filter for the number 3.555, this is the percentage in the second parentheses. Enter the following regex in the Regular Expression field:

(\d+\.\d+).*?(\d+\.\d+).*?(\d+\.\d+)

As Index of Capturing Group, enter 3. This extracts the desired number 3.555.

The index must be 3 in this case because the capturing groups here are the following:

  • Group 1 contains 3.49%), 1 Min (3.555), 5 Min (3.90
  • Group 2 contains 3.49
  • Group 3 contains 3.555
  • Group 4 contains 3.90

Keep this note about index and capturing groups in mind when using number extraction.

i_round_redIt is not possible to match an empty string with the PRTG regex sensor search.

i_round_bluePRTG supports Perl Compatible Regular Expression (PCRE) regex. For more information, see section Regular Expressions.

Channel List

i_round_blueWhich channels the sensor actually shows might depend on the target device, the available components, and the sensor setup.

Channel

Description

Downtime

In the channel table on the Overview tab, this channel never shows any values. PRTG uses this channel in graphs and reports to show the amount of time in which the sensor was in the Down status

Extracted Value

The value extracted from the string (optional)

Response Time

The response time

i_round_blueThis channel is the primary channel by default.
